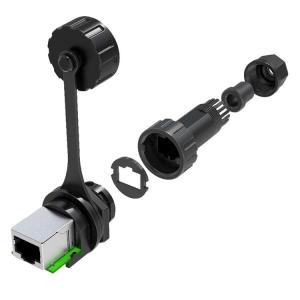

RJ45 Network Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For Cable Extension
Drawing data sheet Download
Ethernet couplers can be divided into different types according to their different characteristics and applications. In general, they can be classified into unshielded or shielded Ethernet couplers, indoor or outdoor RJ45 couplers, and inline Ethernet couplers or keystone couplers. What’s more, it can also be divided into CAT5 couplers, CAT5E couplers, CAT6 couplers, CAT6A couplers, CAT7 couplers, and so on based on various categories.
RJ45 Network Adapter Female (TMPMWRJ0001) Attributes:
| Model: | TMPMWRJ0001 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 40mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Manner of packing : | 50pcs/tray,500pcs/case |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Network Adapter Female (TMPMWRJ0001) Mechnical Drawing:
Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:30mQ
Service life:750 cycle Min
Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 43.20 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
