USB Type B IP68 125V 1.5A RJ45 Waterproof Coupler Panel Mount

Brand Name : Tmulink

Model Number : TMZJT020063

Certification : CE/RoHS/ISO9001

Place of Origin : Guangdong, China (Mainland)

MOQ : 50

Price : Supportive

Payment Terms : T/T

Supply Ability : 50K PCS/MONTH

Delivery Time : 20days

Packaging Details : Neutral packing or custom packing with label.

Product Type : USB Type B Coupler

Jack Type : USB Type B

Current Rating : 1.5 A

Voltage Rating : 125V

Contact Resistance : 30mΩ

Mounting Type : Panel Mount

Contact Now

USB Type B IP68 125V 1.5A RJ45 Waterproof Coupler Panel Mount

USB B Coupler Female To Female Waterproof Dustproof Coupler Industrial Grade For printer

This USB 2.0 B Female to B Female Adapter can be used to connect two USB cables with male connectors.

  • Connector 1: USB 2.0 Type B Female
  • Connector 2: USB 2.0 Type B Female
  • Waterproof sealing design
  • Gold plated contacts
  • Easily convert existing cables to your needs


USB Type B IP68 125V 1.5A RJ45 Waterproof Coupler Panel Mount
USB B Coupler F/F (TMZJT020063) Attributes:

Model:TMZJT020063
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :USB-BF To USB-BF Adapter
Jack Type:USB-BF
Number of Positions :4
Terminals per Port:4
LED Option:No
Shielded EMI Tabs:No
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:40mΩ
Insulation resistance:500 MΩ MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Manner of packing :50pcs/tray,500pcs/case
Delivery Time:20 Days
Supply Ability:5KK/year

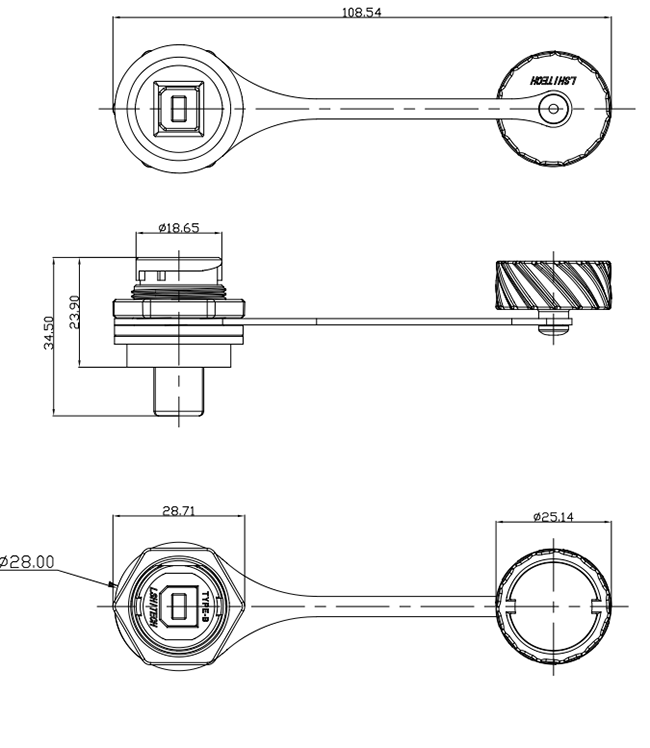

USB B Coupler F/F (TMZJT020063) Mechnical Drawing:
USB Type B IP68 125V 1.5A RJ45 Waterproof Coupler Panel MountUSB Type B IP68 125V 1.5A RJ45 Waterproof Coupler Panel Mount
Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:40mQ
Service life:750 cycle Min

USB B Coupler F/F Product Structure:
HDMI Adapter
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 34.50 mm
4P4C ( 4 positions 4 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
