HDMI RJ45 Panel Mount Connector Female To Female Straight Through

Brand Name : TM

Model Number : TMZJT020011

Certification : UL,Rohs,Reach,ISO9001

Place of Origin : Guangdong of China

MOQ : 500/1000/2000 pcs

Price : Supportive

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 500K/year

Delivery Time : 20 Days

Packaging Details : 1pcs/bag

Jack Type : HDMI

Panel Stop : Yes

Screw Hole : Yes

Terminals per Port : 19

LED Option : No

Shielded EMI Tabs : No

Voltage rating : 30Vmax

Current rating : 1.5A

Contact resistance : 30mΩ

Insulation resistance : 500 MΩ MIN @ 500V DC

Dielectric resistance : 1000V AC RMS 50Hz. 1MIN

Durrability： : 750 CYCLES MIN

Contact Now

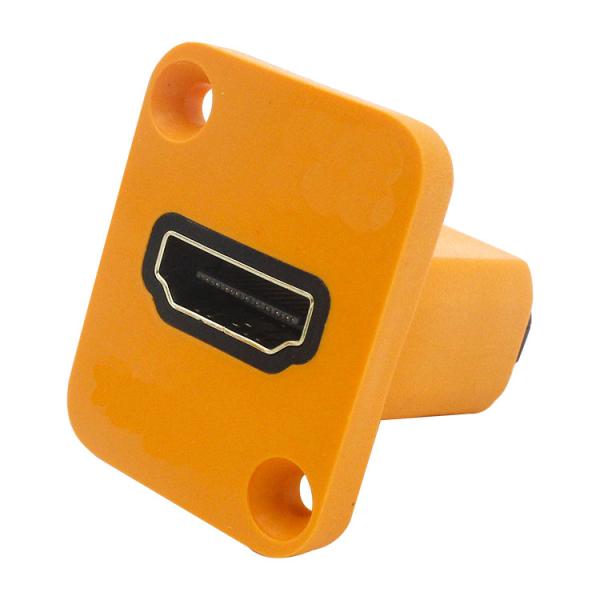

HDMI RJ45 Panel Mount Connector Female To Female Straight Through

HDMI Adapter/Coupler Female To Female Straight Through With Panel & Screw Hole TMZJT020011

HDMI Adapter/Coupler Product Structure:

HDMI Modular Jack
One to one Port
Connector Length: 29 mm
Connector Width: 26 mm
Connector Height: 33 mm
Connector Lock hole spacing: 19*24 mm
19P19C ( 19 positions 19 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

HDMI Adapter/Coupler ( TMZJT020011) Mechnical Drawing:
